| Chladiace a mraziace agregáty Danfoss Optyma | R404A/R507 |
| Typ |
Okolitá
teplota |
Chladiaci výkon [W] / Odparovacia teplota [°C] | Pripojenie | Príkon pri to=-10°C |
Odber prúdu pri to=-10°C |
Kompresor | Obj. číslo Danfoss |
Obj. číslo DTN |
||||||||||
| °C | -40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | 0 | 5 | sanie | výtlak | [W] | [A] | ||||
| OP-MCZC030 | 32 | - | - | - | - | 970 | 1340 | 1770 | 2240 | 2760 | 3320 | 1/2" | 3/8" | 1 300 | 2,98 | MTZ18 | 114X5012 | 121.18.2100 |
| OP-MCZC038 | 32 | - | - | - | - | 1590 | 2070 | 2610 | 3200 | 3850 | 4540 | 1/2" | 3/8" | 1 600 | 3,46 | MTZ22 | 114X5013 | 121.18.2105 |
| OP-LCHC048 | 32 | 830 | 1190 | 1390 | 1780 | 2190 | 2610 | 3050 | - | - | - | 5/8" | 3/8" | 2 200 | 3,56 | NTZ048 | 114X5037 | 121.18.1100 |
| OP-MCZC048 | 32 | - | - | - | - | 2140 | 2780 | 3490 | 4280 | 5120 | 6030 | 1/2" | 1/2" | 2 000 | 4,44 | MTZ28 | 114X5014 | 121.18.2110 |
| OP-MCZC054 | 32 | - | - | - | - | 2480 | 3160 | 3910 | 4720 | 5580 | 6500 | 5/8" | 1/2" | 2 300 | 4,65 | MTZ32 | 114X5015 | 121.18.2115 |
| OP-MCZC060 | 32 | - | - | - | - | 2900 | 3654 | 4480 | 5362 | 6295 | 7252 | 5/8" | 1/2" | 2 700 | 5,35 | MTZ36 | 114X5016 | 121.18.2120 |
| OP-LCHC068 | 32 | 1121 | 1629 | 2193 | 2834 | 3544 | 4317 | 5139 | - | - | - | 5/8" | 1/2" | 3 300 | 5,52 | NTZ068 | 114X5038 | 121.18.1105 |
| OP-MCZC068 | 32 | - | - | - | - | 3400 | 4252 | 5181 | 6177 | 7231 | 8333 | 5/8" | 1/2" | 3 100 | 6,27 | MTZ40 | 114X5017 | 121.18.2125 |
| OP-MCZC086 | 32 | - | - | - | - | 3830 | 4872 | 6034 | 7297 | 8655 | 10076 | 7/8" | 1/2" | 3 400 | 6,35 | MTZ51 | 114X5018 | 121.18.2130 |
| OP-LCHC096 | 32 | 1474 | 2083 | 2771 | 3567 | 4461 | 5442 | 6499 | - | - | - | 7/8" | 1/2" | 4 300 | 6,72 | NTZ096 | 114X5039 | 121.18.1110 |
| OP-MCZC096 | 32 | - | - | - | - | 4090 | 5257 | 6562 | 7996 | 9551 | 11189 | 7/8" | 1/2" | 3 700 | 7,23 | MTZ57 | 114X5019 | 121.18.2135 |
| OP-LCHC108 | 32 | 1630 | 2390 | 3332 | 4297 | 5328 | 6399 | 7500 | - | - | - | 7/8" | 1/2" | 4 900 | 8,37 | NTZ108 | 114X5040 | 121.18.1115 |
| OP-MCZC108 | 32 | - | - | - | - | 4973 | 6338 | 7875 | 9576 | 11425 | 13407 | 7/8" | 1/2" | 4 900 | 10,82 | MTZ65 | 114X5020 | 121.18.2140 |
| OP-MCZC121 | 32 | - | - | - | - | 5665 | 7198 | 8923 | 10830 | 12908 | 15143 | 1-1/8" | 1/2" | 5 400 | 11,95 | MTZ73 | 114X5021 | 121.18.2145 |
| OP-LCHC136 | 32 | 2375 | 3222 | 4307 | 5437 | 6685 | 8030 | 9466 | - | - | - | 7/8" | 5/8" | 6 400 | 11,18 | NTZ136 | 114X5041 | 121.18.1120 |
| OP-MCZC136 | 32 | - | - | - | - | 6626 | 8293 | 10135 | 12140 | 14304 | 16571 | 1-1/8" | 1/2" | 6 300 | 13,20 | MTZ81 | 114X5022 | 121.18.2150 |
| OP-MCZC171 | 32 | - | - | - | - | 7470 | 9511 | 11761 | 14177 | 16742 | 19398 | 1-1/8" | 5/8" | 7 500 | 15,21 | MTZ100 | 114X5023 | 121.18.2155 |
| OP-LCHC215 | 32 | 3565 | 4910 | 6588 | 8308 | 10169 | 12158 | 14229 | - | - | - | 1-1/8" | 3/4" | 9 900 | 18,15 | NTZ215 | 114X5042 | 121.18.1125 |
| OP-MGZC215 | 32 | - | - | - | - | 10050 | 12721 | 15722 | 19046 | 22643 | 26523 | 1-1/8" | 5/8" | 9 800 | 19,79 | MTZ125 | 114X5073 | 121.18.2160 |
| OP-MGZC242 | 32 | - | - | - | - | 11643 | 14523 | 17710 | 21156 | 24852 | 28704 | 1-1/8" | 5/8" | 11 200 | 22,29 | MTZ144 | 114X5074 | 121.18.2165 |
| OP-LCHC271 | 32 | 4988 | 6726 | 8901 | 11092 | 13431 | 15900 | 18435 | - | - | - | 1-1/8" | 3/4" | 12 700 | 19,58 | NTZ271 | 114X5043 | 121.18.1130 |
| OP-MGZC271 | 32 | - | - | - | - | 12997 | 16251 | 19849 | 23766 | 27959 | 32404 | 1-1/8" | 5/8" | 12 500 | 24,26 | MTZ160 | 114X5075 | 121.18.2170 |
Chladiaci výkon je uvedený pre nasledovné parametre: teplota sacieho potrubia = 20°C, prehriatie = 10 K, frekvencia 50 Hz
Výbava kondenzačných jednotiek: zásobník chladiva, 2 uzatváracie ventily, duálny presostat KP17WB na konzole, tlakovo a elektricky zapojený, elektrická prípojná skrinka
Typ napájania: E - kompresor 400V/3~/50Hz, ventilátor 230V/1~/50Hz
  |
 |

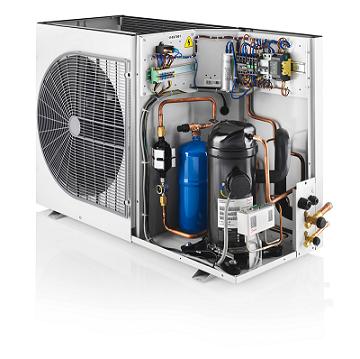

| Agregáty do vonkajšieho prostredia | R404A |
| Typ |
Okolitá
teplota |
Chladiaci výkon [W] / Odparovacia teplota [°C] | Pripojenie | Príkon pri to= -10°C |
Rozmery | Kompresor | Typ napájania | Obj. číslo Danfoss | Obj. číslo DTN |
||||||
| °C | -15 | -10 | -5 | 0 | 5 | 10 | sanie | výtlak | [W] | ||||||
| OP-SMLZ015MG | 32 | 2800 | 3400 | 4050 | 4800 | 5650 | 6550 | 3/4" | 1/2" | 1 700 | B2 | MLZ015 | G | 114X7061 | 122.18.1000 |
| OP-SMLZ015ME | 32 | E | 114X7062 | 122.18.1005 | |||||||||||
| OP-SMLZ021MG | 32 | 3750 | 4500 | 5350 | 6250 | 7250 | 8400 | 3/4" | 1/2" | 2 300 | B2 | MLZ021 | G | 114X7063 | 122.18.1010 |
| OP-SMLZ021ME | 32 | E | 114X7064 | 122.18.1015 | |||||||||||
| OP-SMLZ026MG | 32 | 4500 | 5350 | 6250 | 7300 | 8400 | 9600 | 3/4" | 1/2" | 3 050 | B2 | MLZ026 | G | 114X7065 | 122.18.1020 |
| OP-SMLZ026ME | 32 | E | 114X7066 | 122.18.1025 | |||||||||||
| OP-SMLZ030MG | 32 | 6050 | 7300 | 8750 | 10350 | 12150 | 14100 | 7/8" | 1/2" | 3 200 | B3 | MLZ030 | G | 114X7067 | 122.18.1030 |
| OP-SMLZ030ME | 32 | E | 114X7068 | 122.18.1035 | |||||||||||
| OP-SMLZ038MG | 32 | 7050 | 8500 | 10150 | 11950 | 13950 | 16200 | 7/8" | 1/2" | 3 850 | B3 | MLZ038 | G | 114X7069 | 122.18.1040 |
| OP-SMLZ038ME | 32 | E | 114X7070 | 122.18.1045 | |||||||||||
| OP-SMLZ045ME | 32 | 8250 | 9900 | 11750 | 13800 | 16050 | 18500 | 7/8" | 1/2" | 4 800 | B3 | MLZ045 | E | 114X7071 | 122.18.1050 |
| OP-SMLZ048ME | 32 | 8850 | 10600 | 12550 | 14700 | 17050 | 19700 | 7/8" | 1/2" | 5 250 | B3 | MLZ048 | E | 114X7072 | 122.18.1055 |
Napájanie G - kompresor 230V/50Hz/1~ fáza, ventilátor 230V/50Hz/1~ fáza
Napájanie E - kompresor 400V/50Hz/3~ fázy, ventilátor 230V/50Hz/1~ fáza
| Rozmery B2 | Rozmery B3 |
 |
 |
 |
 |
 |
