Distribučné elementy pre montáž klimatizačných rozvodov - refnety |

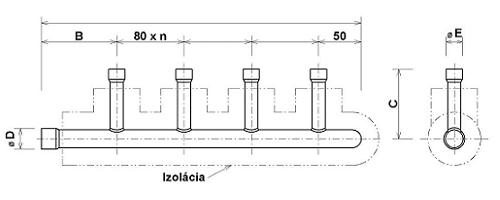

RBM - HY1043E |
Tlačná strana | Sacia strana |
Typ | A | B | C | ø D | ø E | n | Príslušenstvo ( redukcie ) | Obj. číslo DTN |
|
[mm] | [mm] | [mm] | [mm] | [mm] | |||||
RBM - HY1043E | sacia strana | 380 | 90 | 83.6 | 22.2 | 15.9 | 3 | 4x ø15.9 - ø9.5, 4x ø15.9 - ø12.7, 1x ø22.2 - ø15.9, 1x ø22.2 - ø19.1, 1x ø22.2 - ø28.6 |
401.56.9070 |
tlačná strana | 360 | 60 | - | 15.9 | 9.5 | 3 | 1x ø22.2 - ø15.9, 1x ø15.9 - ø9.5, 1x ø15.9 - ø12.7 |

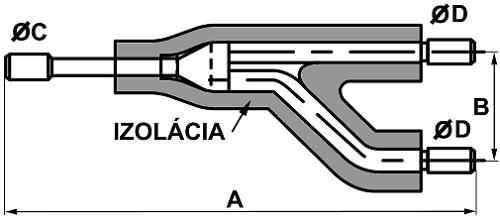

RBM - BY55E, BY105E, BY205E, BY305E |
Strana kvapaliny | Sacia strana |
Typ | A | B | ø C | ø D | Príslušenstvo ( redukcie ) | Obj. číslo DTN |
|||
[mm] | [mm] | [mm] | [mm] | ||||||
RBM - BY55E | sacia strana | 160 | 80 | 15.9 | 15.9 | 1x ø15.9 - ø12.7, 2x ø15.9 - ø19.1, 2x ø15.9 - ø12.7 - ø9.5 |
401.56.9050 | ||
tlačná strana | 360 | 60 | 9.5 | 9.5 | 2x ø9.5 - ø6.4 | ||||
RBM - BY105E | sacia strana | 380 | 90 | 22.2 | 22.2 | 2x ø22.2 - ø15.9, 2x ø22.2 - ø28.6, 1x ø15.9 - ø12.7 - ø9.5 |
401.56.9055 | ||
tlačná strana | 360 | 60 | 15.9 | 15.9 | 1x ø15.9 - ø12.7, 1x ø15.9 - ø12.7 - ø9.5, 1x ø15.9 - ø12.7 - ø9.5 - ø6.4 |
||||
RBM - BY205E | sacia strana | 380 | 90 | 31.8 | 28.6 | 1x ø28.6 - ø15.9, 1x ø31.8 - ø28.6, 2x ø28.6 - ø22.2, 1x ø28.6 - ø34.9, 1x ø31.8 - ø34.9, 1x ø15.9 - ø12.7 - ø9.5 |
401.56.9060 | ||
tlačná strana | 360 | 60 | 15.9 | 15.9 | 1x ø15.9 - ø12.7, 1x ø15.9 - ø12.7 - ø9.5 - ø6.4 | ||||
RBM - BY305E | sacia strana | 380 | 90 | 38.1 | 38.1 | 1x ø28.6 - ø22.2, 3x ø38.1 - ø34.9, 2x ø38.1 - ø41.3, 2x ø38.1 - ø28.6, 1x ø38.1 - ø15.9, 1x ø15.9 - ø12.7 - ø9.5 |
401.56.9065 | ||
tlačná strana | 360 | 60 | 22.2 | 22.2 | 3x ø22.2 - ø19.1 - ø15.9, 1x ø15.9 - ø12.7 - ø9.5 - ø6.4 |
